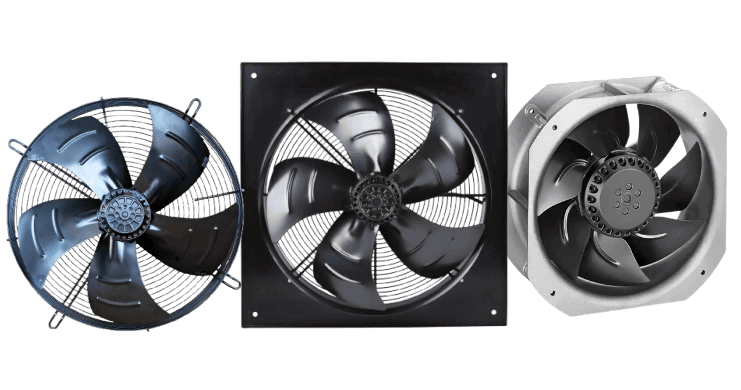

Axial Flow Fans

200 to 630 mm
Sr.
No. 		Model Volt
(V) 		Frequency
(Hz) 		Watts
(W) 		Current
(A) 		Speed
(RPM) 		Capacitor
(uF) 		Air Vol.
(M3 / HR) 		Air Vol.
(CFM) 		Noise
(dBA) 		Nt. Wt.
(Kg.) 		enquiry
1 AF200-2E-S1 230 50 60 0.24 2550 2.00 850 510 55 1.7
2 AF200-2D-S1 415 50 65 0.18 2600 ---- 850 510 55 1.7
3 AF250-4E-S2 230 50 60 0.30 1450 2.00 800 480 60 2.3
4 AF250-2E-S2 230 50 115 0.49 2600 3.15 1700 1020 66 2.3
5 AF250-2D-S2 415 50 115 0.25 2600 ---- 1700 1020 66 2.3
6 AF300-4E-S3 230 50 90 0.37 1400 3.15 1800 1080 60 3.5
7 AF300-4D-S3 415 50 92 0.36 1400 ---- 1800 1080 60 3.5
8 AF300-2E-S3 230 50 145 0.60 2300 4.00 2300 1380 66 3.7
9 AF300-2D-S3 415 50 145 0.25 2300 ---- 2300 1380 66 3.7
10 AF350-4E-K3 230 50 140 0.63 1400 4.00 2500 1500 58 4.8
11 AF350-4D-K3 415 50 140 0.48 1400 ---- 2500 1500 58 4.8
12 AF400-4E-K4 230 50 180 0.75 1400 6.00 4150 2490 64 5.6
13 AF400-4D-K4 415 50 180 0.57 1400 ---- 4150 2490 64 5.6
14 AF450-4E-K5 230 50 250 1.02 1400 8.00 5500 3300 65 6.6
15 AF450-4D-K5 415 50 250 0.60 1400 ---- 5500 3300 65 6.6
16 AF450-4E-M3 230 50 380 1.60 1350 10.00 5800 3480 71 7.9
17 AF450-4D-M3 415 50 380 1.23 1350 ---- 5800 3480 71 7.9
18 AF500-4E-M3 230 50 380 1.65 1350 10.00 7200 4320 70 8.8
19 AF500-4D-M3 415 50 350 0.85 1350 ---- 7200 4320 70 8.8
20 AF550-4E-M5 230 50 560 2.45 1300 12.50 9000 5400 72 11.4
21 AF550-4D-M5 415 50 550 1.02 1300 ---- 9000 5400 72 11.4
22 AF600-4E-M7 230 50 710 3.00 1150 16.00 11000 6600 76 14.8
23 AF600-4D-M7 415 50 780 1.45 1350 ---- 11500 6900 78 14.8
24 AF630-4D-M7 415 50 790 1.80 1350 ---- 13000 7800 80 15.5

Axial Flow Fans

Sqaure Housing
Sr.
No. 		Model Volt
(V) 		Frequency
(Hz) 		Watts
(W) 		Current
(A) 		Speed
(RPM) 		Capacitor
(uF) 		Air Vol.
(M3 / HR) 		Air Vol.
(CFM) 		Noise
(dBA) 		Nt. Wt.
(Kg.) 		enquiry
1 AF200-2E-S1-H 230 50 70 0.30 2500 2.00 1000 600 58 2.00

Axial Flow Fans

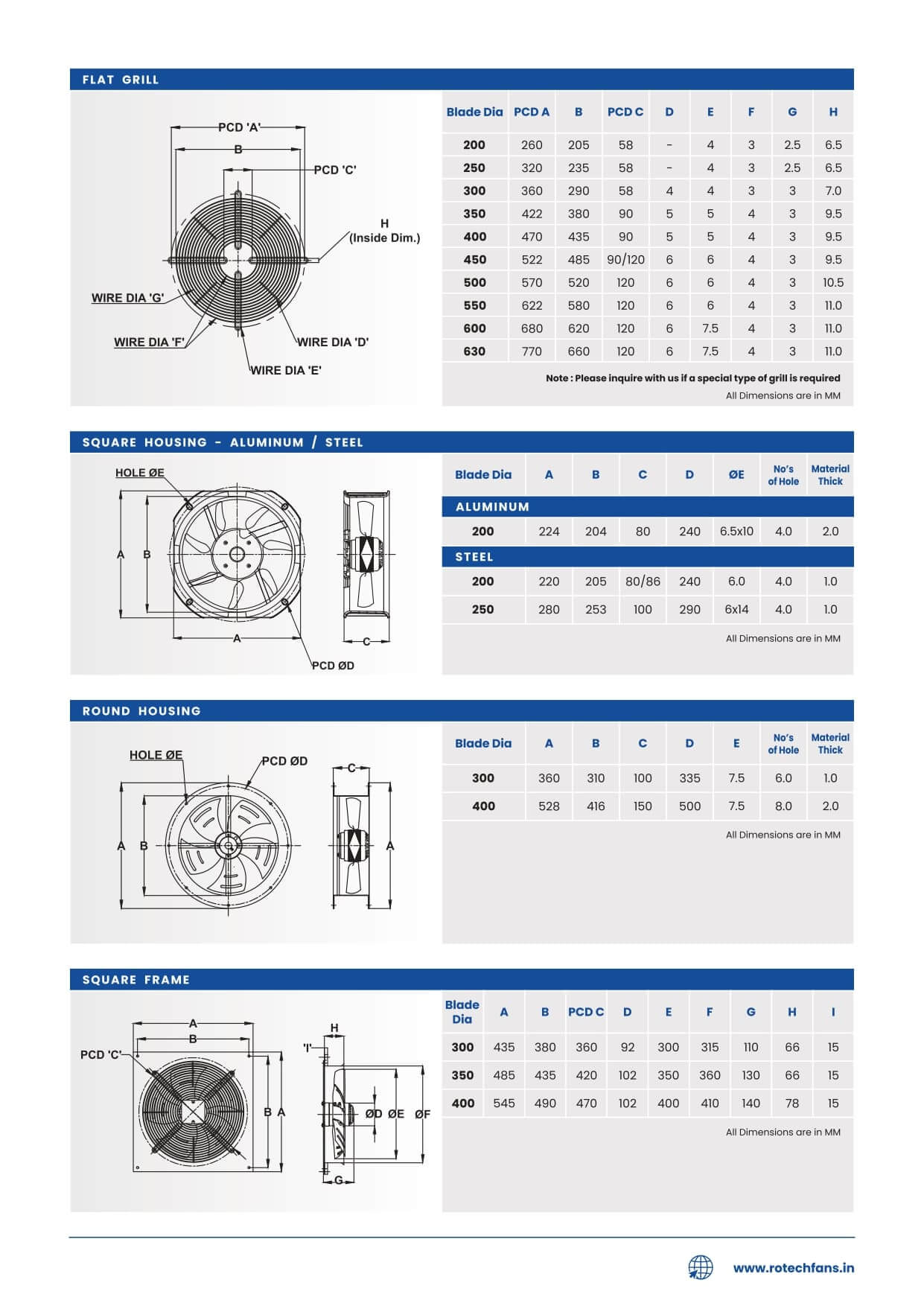

Accessories
